YOKOHAMA's International Hose Series
Yokohama's International Hose Series are premium hydraulic hose line designed specifically for demanding applications.
With our extensive knowledge and experience in rubber compunds and hose design, we have realized superior performance and long life.
Discover the Yokohama Hose difference today!!

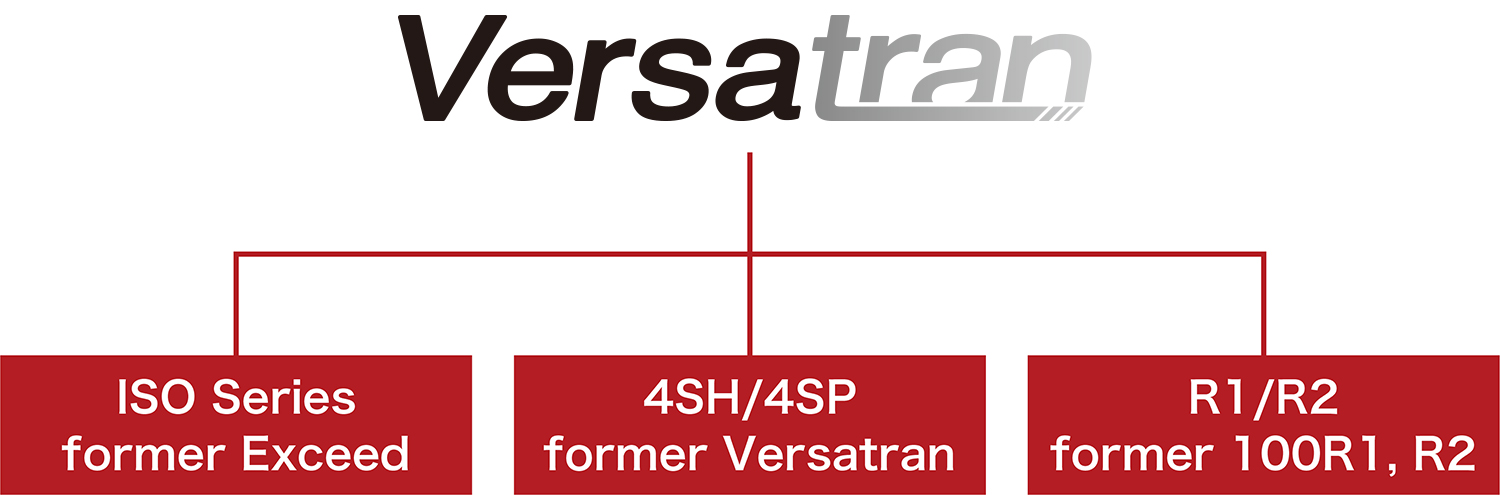

Product lineup
ISO Series former Exceed
Unlike SAE/EN hoses, which are basically designed by hose structure, ISO hoses are designed by constant pressure and compliant with ISO18752. Exceed series are realized superior performance with smaller OD, smaller bend radius and lightweight.
4SH/4SP former Versatran
4SH/ 4SP series is designed by hose structure. While complying with EN856, 4SH/ 4SP series has Yokohama's unique flexibility and durability. 30% smaller bend radius than the standard is a great benefit for customers.
R1/R2 former 100R1、R2
100R1/ 100R2 series are compliant with SAEJ517 and EN853. Yokohama's high quality hoses enhance the safety of hydraulic hoses in various applications.
Product Chart
Reinforcement
1W/B
2W/B
4W/S
6W/S
Standard:ISO18752
Inch | 1/4 | 3/8 | 1/2 | 5/8 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
---|---|---|---|---|---|---|---|---|---|
Dash | -04 | -06 | -08 | -10 | -12 | -16 | -20 | -24 | -32 |
mm (Nominal) | 6 | 9 | 12 | 15 | 19 | 25 | 32 | 38 | 50 |
7.0MPa | VS07 | VS07 | - | - | - | - | - | - | - |
21.0MPa | VS21 | VS21 | VS21 | VS21 | VS21 | VS21 | VS21 | VS21 | VS21 |
28.0MPa | VS28 | VS28 | VS28 | VS28 | VS28 | VS28 | VS28 | VS28 | VS28 |
35.0MPa | - | - | VS35 | VS35 | VS35 | VS35 | VS35 | VS35 | VS35 |
42.0MPa | - | - | VS42 | VS42 | VS42 | VS42 | - | - | VS42 |
Standard:EN856 / SAE J517 100R15
Inch | 1/4 | 3/8 | 1/2 | 5/8 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
---|---|---|---|---|---|---|---|---|---|
Dash | -04 | -06 | -08 | -10 | -12 | -16 | -20 | -24 | -32 |
mm (Nominal) | 6 | 9 | 12 | 15 | 19 | 25 | 32 | 38 | 50 |
4 spiral series | - | - | VE4P | VE4P | - | - | - | - | - |
4 spiral series | - | - | - | - | VE4H | VE4H | VE4H | VE4H | - |
Multi spiral series | - | - | VS42 | - | VS42 | VS42 | VS42 | VS42 | VS42 |
Working puressure chart
* Please refer to our product page for the details of each hose spec
Inch | 1/4 | 3/8 | 1/2 | 5/8 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
---|---|---|---|---|---|---|---|---|---|
Dash | -04 | -06 | -08 | -10 | -12 | -16 | -20 | -24 | -32 |
mm (Nominal) | 6 | 9 | 12 | 15 | 19 | 25 | 32 | 38 | 50 |
7.0MPa | VS07 | VS07 | - | - | - | - | - | - | - |
21.0MPa | VS21 | VS21 | VS21 | VS21 | VS21 | VS21 | VS21 | VS21 | VS21 |
28.0MPa | VS28 | VS28 | VS28 | VS28 | VS28 | VS28 | VS28 | VS28 | VS28 |
29.0MPa | - | - | - | - | - | - | - | VE4H | - |
32.5MPa | - | - | - | - | - | - | VE4H | - | - |
35.0MPa | - | - | VS35 | VS35 | VS35 | VS35 | VS35 | VS35 | VS35 |
- | - | - | VE4P | - | - | - | - | - | |
38.0MPa | - | - | - | - | - | VE4H | - | - | - |
41.5MPa | - | - | VE4P | - | - | - | - | - | - |
42.0MPa | - | - | VS42 | - | VS42 | VS42 | VS42 | VS42 | VS42 |
