Off The Road Tires

Off-the-road tires are utilized for large-scale machinery at construction and mining and other sites with no roads. YOKOHAMA has dedicated off-the-road tire plants that produce tires with durability and heat tolerance for global markets. Off-the-road tires offer substantial support for machinery used at various civil engineering sites, including ultra-large dump trucks, earth and gravel at mining and dam construction sites, bulldozers for earth removal and graders for road construction and snow removal.

LOADER & DOZERWheel Loaders / Tire Dozers

Diagonal (Bias) Ply

Y103 L-2 TRACTION

Y103 L-2 TRACTION

Good traction and flotation on muddy ground. Its directional tread pattern produce self cleaning action.

  • Use: Loaders and Dozers
  • Loaders and Dozers
Y103 Available Sizes
TIRE SIZE T/T T/L
12.5/70-16   6
10-16.5 4 4 , 6
13.5-20 14
42X17-20 10
17.5/65-20   10
16.9-24 10 , 12 10 , 12
18.4-24 10 10
10.00-20 8 , 10 , 14
14.00-24 12 12
16.00-24   16
15.5-25   12
17.5-25 12 , 16 12 , 16
20.5-25   12 , 16
23.5-25   16

Y548 L-2 SNOW

Y548 L-2 SNOW

Specially designed for operation on snowy roads, directional tread pattern provides excellent traction and pulling performance.

  • Use: Loaders
  • Loaders
Y548 Available Sizes
TIRE SIZE T/T T/L
12.5/70-16   6
17.5/65-20   10
16.9-24 10 10 , 12
18.4-24   10
17.5-25 12 , 16 12 , 16
20.5-25 12 , 16 , 20 12 , 16 , 20

Y67 L-3 ROCK

Y67 L-3 ROCK

For loaders and dozers that are mainly used on rock, coal and log-strewn terrain. Its tough tread is protected from cuts and snags, and its wide ground contact area lengthens service life.

  • Use: Loaders and Dozers
  • Loaders and Dozers
Y67 Available Sizes
TIRE SIZE T/T T/L
16.9-24 *10 *10
12.00-24 16 , 20
13.00-24 18 *16
14.00-24 12 , 16 , 24 *12 , 16
18.00-25 16 16
15.5-25 12 12
17.5-25 *12 , 16 *12 , 16
20.5-25 12 , 16 , 20 12 , 16 , 20
23.5-25 12 , 20 , 24 *16 , 20 , 24
26.5-25 24 16 , 20 , 24 , 26 , 28
29.5-25   22 , 28
29.5-29   28

*Steel breaker construction available.

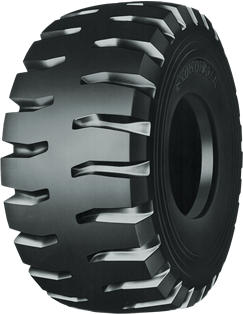

Y526K L-3 ROCK

Y526K L-3 ROCK

Developed especially for use on loaders. Side protector improves shoulder to sidewall cut resistance.

  • Use: Loaders and Dozers to be used in quarries
  • Loaders and Dozers to be used in quarries
Y526K Available Sizes
TIRE SIZE T/T T/L
20.5-25 16 , 20 *16 , 20
23.5-25 *16 , 20 *16 , 20

*Steel breaker construction available.

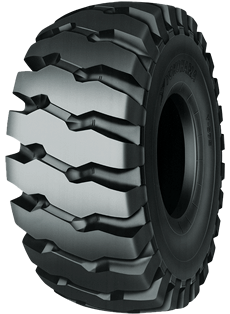

Y575 L-3 ROCK

Y575 L-3 ROCK

The Y575 features an optimized configuration for improved durability and cut resistance. Its flush tread pattern provides greater contact area meaning a steady, more constant area remains in contact over varying surfaces.

  • Use: Loaders and Dozers
  • Loaders and Dozers
Y575 Available Sizes
TIRE SIZE T/T T/L
17.5-25 12 *12 ,  16
20.5-25 *12 , *16 , 20 *12 , *16 ,  20
23.5-25 *16 ,  20 12 , *16 , *20 , 24
26.5-25  20 16 , *20 ,  24 , 28
29.5-25   *22 , *28 , *34

*Steel breaker construction available.

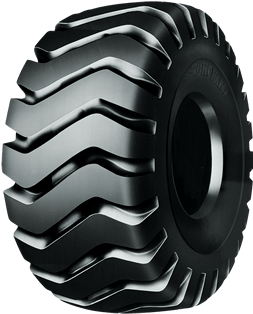

Y67E L-4 ROCK DEEP TREAD

Y67E L-4 ROCK DEEP TREAD

Suited for loaders and dozers on rock, coal and log-strewn terrain. Deep tread offers good wear and cut resistance.

  • Use: Loaders and Dozers
  • Loaders and Dozers
Y67E Available Sizes
TIRE SIZE T/T T/L
17.5-25   12
29.5-29   18

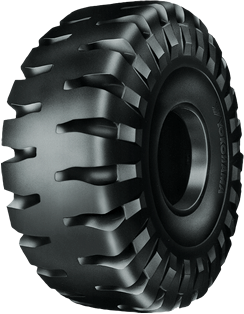

Y545 [with side protector] L-4 ROCK DEEP TREAD

Y545 [with side protector] L-4 ROCK DEEP TREAD

Suited for loaders and dozers on rock, coal and log-strewn terrain. Deep tread offers good wear and cut resistance.

  • Use: Loaders and Dozers
  • Loaders and Dozers
Y545 with side protector Available Sizes
TIRE SIZE T/T T/L
23.5-25 16　　　 *16 , *20 ,  24
26.5-25   20 ,  24 ,  26 ,  32
29.5-25   22 ,  28
35/65-33   *24 , *30 , *36 , *42 , 48
45/65-45    50 , *58

*Steel breaker construction available.

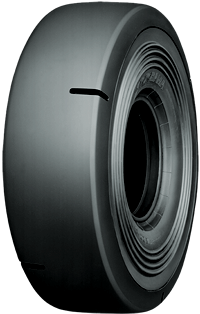

Y69U　[with ZSC side protector]　L-4S SMOOTH DEEP TREAD

Y69U　[with ZSC side protector]　L-4S SMOOTH DEEP TREAD

Specially developed for underground vehicle. Unique wavy side profile with special reinforcement(*ZSC) provides excellent sidewall cut resistance.
*ZSC : Zeon Super Composite

  • Use: Loaders and Underground vehicles
  • Dump trucks
Y69U with ZSC side protector Available Sizes
TIRE SIZE T/T T/L
12.00-24 *16

*Steel breaker construction available.

Y524 L-5 ROCK EXTRA DEEP TREAD

Y524 L-5 ROCK EXTRA DEEP TREAD

Specially designed for loaders and dozers in highly abrasive conditions. Extra deep tread has strong resistance to cuts and wear.

  • Use: Loaders and Dozers
  • Loaders and Dozers
Y524 Available Sizes
TIRE SIZE T/T T/L
23.5-25 24 16 , 20 ,  24
29.5-29   22 , 28 , *34

*Steel breaker construction available.

Y524　[with side protector]　L-5 ROCK EXTRA DEEP TREAD

Y524　[with side protector]　L-5 ROCK EXTRA DEEP TREAD

Specially designedaSpecially designed for loaders and dozers. Extra deep tread and side protector improves shoulder to sidewall cut resistance and wear. for loaders and dozers in highly abrasive conditions. Extra deep tread has strong resistance to cuts and wear.

  • Use: Loaders and Dozers
  • Loaders and Dozers
Y524 with side protector Available Sizes
TIRE SIZE T/T T/L
20.5-25 　　　　　 12 , 16 , 20
26.5-25   20 , 24 , 26 , 28 , *32 , 36
29.5-25   22 , *28
35/65-33   *24 , *30 , *36 , *42 , *48
40/65-39   *30 , *36 , *56
45/65-45   *38 , *46 , *50 , *58

*Steel breaker construction available.

Y524Z L-5 HALF SLICK EXTRA DEEP TREAD

Y524Z L-5 HALF SLICK EXTRA DEEP TREAD

Specially designed half slick asymmetric tread pattern provides superior tread and sidewall cut resistance, resulting in better tire life.

  • Use: Loaders and Dozers
  • Loaders and Dozers
Y524Z Available Sizes
TIRE SIZE T/T T/L
35/65-33   *36 , *42
45/65-45   *38 ,  46 ,  50 , *58

*Steel breaker construction available.

Y525 L-5 ROCK EXTRA DEEP TREAD

Y525 L-5 ROCK EXTRA DEEP TREAD

Specially designed for use in underground mines. Its extra deep tread gives long service and outstanding cut resistance.

  • Use: Loaders for underground mines
  • Loaders for underground mines
Y525 Available Sizes
TIRE SIZE T/T T/L
1200-24 20

Y69 L-5S SMOOTH EXTRA DEEP TREAD

Y69 L-5S SMOOTH EXTRA DEEP TREAD

Extra deep tread and reinforced sidewalls offer superior resistance to damage and wear.

  • Use: Loaders and Underground vehicles
  • Loaders and Underground vehicles
Y69 Available Sizes
TIRE SIZE T/T T/L
12.00-24 16 , 20
14.00-24 20 , 24
16.00-25   24
18.00-25 28 24 , 28 , 32
17.5-25   16 , 20 , 28
20.5-25 16 16 , 28
23.5-25 28 20
26.5-25   28 , 32

Y69K [with side protector] L-5S REINFORCED, SMOOTH EXTRA DEEP TREAD

Y69K [with side protector] L-5S REINFORCED, SMOOTH EXTRA DEEP TREAD

Reinforced extra deep tread for longer tread wear life and stronger cut resistance. Modified sidewall profile increases resistance to cuts.

  • Use: Loaders and Underground vehicles
  • Loaders and Underground vehicles
Y69K with side protector Available Sizes
TIRE SIZE T/T T/L
18.00-25 　　　　 *28 ,  32
26.5-25   26 ,  32 , 36
29.5-25   34
29.5-29   34 , *40
35/65-33   *42

*Steel breaker construction available.

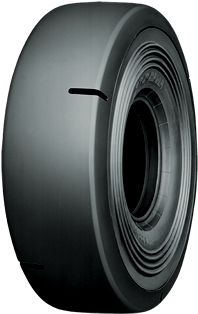

Y69U　[with ZSC side protector]L-5S SMOOTH EXTRA DEEP TREAD

Y69U　[with ZSC side protector]L-5S SMOOTH EXTRA DEEP TREAD

Specially developed for underground vehicle. Unique wavy side profile with special reinforcement(*ZSC) provides excellent sidewall cut resistance.
*ZSC : Zeon Super Composite

  • Use: Loaders and Underground vehicles
  • Loaders and Underground vehicles
Y69U with ZSC side protector Available Sizes
TIRE SIZE T/T T/L
12.00-20 *22
12.00-24 *16
18.00-25   *28 , *32
17.5-25   *20 , *28
26.5-25   *28 , *32

*Steel breaker construction available.
