Off The Road Tires
Off-the-road tires are utilized for large-scale machinery at construction and mining and other sites with no roads. YOKOHAMA has dedicated off-the-road tire plants that produce tires with durability and heat tolerance for global markets. Off-the-road tires offer substantial support for machinery used at various civil engineering sites, including ultra-large dump trucks, earth and gravel at mining and dam construction sites, bulldozers for earth removal and graders for road construction and snow removal.
EARTHMOVER TIRESRigid Dump Trucks / Articulated Dump Trucks / Scrapers
Radial Ply
Specially designed for articulated dump trucks. Non-directional block pattern provides both abrasion resistance and excellent traction on soft surfaces.
- Use: Articulated dump trucks
RB31 Available Sizes
| TIRE SIZE | STAR MARK | T/T | T/L |
|---|---|---|---|
| 17.5R25 |  |
 |
|
| 20.5R25 | |
|
|
| 23.5R25 | |
|
|
| 26.5R25 | |
|
|
| 29.5R25 | |
|

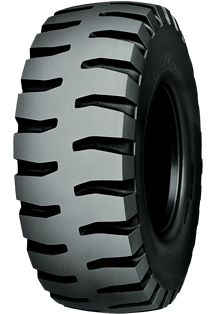

Specially designed for articulated dump trucks. The rock flush pattern and shoulder protector provide excellent cut resistance (tread & sidewall).
- Use: Articulated dump trucks
RL31 Available Sizes
| TIRE SIZE | STAR MARK | T/T | T/L |
|---|---|---|---|
| 17.5R25 | |
|
|
| 20.5R25 | |
|
|
| 23.5R25 | |
|

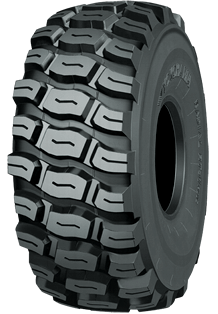

Specially designed for articulated dump trucks. Non-directional tread pattern provides better traction, self-cleaning and flotation on soft and muddy surfaces operation.
- Use: Articulated dump trucks
RT31 Available Sizes
| TIRE SIZE | STAR MARK | T/T | T/L |
|---|---|---|---|
| 20.5R25 | |
|
|
| 23.5R25 | |
|
|
| 26.5R25 | |
|
|
| 750/65R25 | |
|

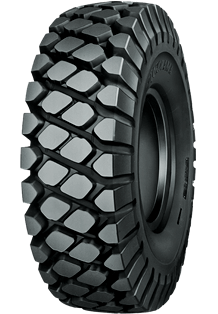

Specially designed for dump trucks. Non-directional block pattern provides both abrasion resistance and excellent traction on soft surfaces. Deep tread with side protectors.
- Use: Dump trucks
RB41 Available Sizes
| TIRE SIZE | STAR MARK | T/T | T/L |
|---|---|---|---|
| 14.00R25 | |
|
|
| 16.00R25 | |
|
Specially designed for dump trucks. Non-directional block pattern and deep tread provide both abrasive resistance and excellent traction on muddy and soft surfaces. High resistance to wearing ensures long tread life.
- Use: Dump trucks
RB42 Available Sizes
| TIRE SIZE | STAR MARK | T/T | T/L |
|---|---|---|---|
| 18.00R33 | |
|
|
| 24.00R35 | |
|
|
| 27.00R49 | |
|
|
| 33.00R51 | |
|

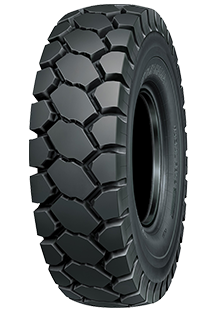

Zig-zag pattern provides excellent traction on muddy and rocky surfaces. Large center blocks resist cuts and enhance overall wear. Steel cord belts guard against tread punctures.
- Use: Dump trucks
RB42A Available Sizes
| TIRE SIZE | STAR MARK | T/T | T/L |
|---|---|---|---|
| 24.00R35 | |
|

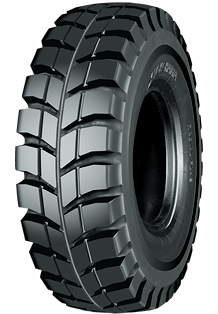

Specially designed for dump trucks. Deep flush pattern and shoulder protector provide both abrasion and high cut resistance on rocky and gravel surfaces.
- Use: Dump trucks
RL42 Available Sizes
| TIRE SIZE | STAR MARK | T/T | T/L |
|---|---|---|---|
| 1800R33 | |
|
|
| 2400R35 | |
|

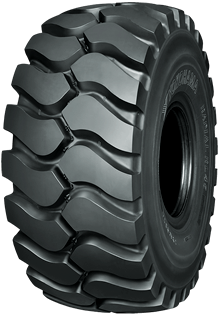

Specially designed for articulated dump trucks. Non-directional block pattern provides both abrasion and cut resistance on rocky and gravel surfaces.
- Use: Articulated dump trucks
RL45 Available Sizes
| TIRE SIZE | STAR MARK | T/T | T/L |
|---|---|---|---|
| 26.5R25 | |
|
|
| 29.5R25 | |
|
Specially designed for under cut and abrasive conditions. Large ground contact area and deep tread provide good cut resistance and long service life. A center thin groove provides heat dissipation effectively.
- Use: Dump trucks
RL47 Available Sizes
| TIRE SIZE | STAR MARK | T/T | T/L |
|---|---|---|---|
| 33.00R51 | |
|

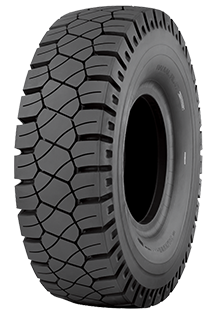

Specially designed for under cut and abrasive conditions. Large ground contact area and deep tread provide good cut resistance and long service life. A center thin groove provides heat dissipation effectively.
- Use: Dump trucks
RL47A Available Sizes
| TIRE SIZE | STAR MARK | T/T | T/L |
|---|---|---|---|
| 27.00R49 | |
|
Specially designed for articulated dump trucks. Non-directional block pattern provides both abrasion resistance and excellent traction on soft, rocky and gravel surfaces.
- Use: Articulated dump trucks
RT41 Available Sizes
| TIRE SIZE | STAR MARK | T/T | T/L |
|---|---|---|---|
| 23.5R25 | |
|
|
| 26.5R25 | |
|
|
| 29.5R25 | |
|
