Off The Road Tires
Off-the-road tires are utilized for large-scale machinery at construction and mining and other sites with no roads. YOKOHAMA has dedicated off-the-road tire plants that produce tires with durability and heat tolerance for global markets. Off-the-road tires offer substantial support for machinery used at various civil engineering sites, including ultra-large dump trucks, earth and gravel at mining and dam construction sites, bulldozers for earth removal and graders for road construction and snow removal.
EARTHMOVER TIRESRigid Dump Trucks / Articulated Dump Trucks / Scrapers
Diagonal (Bias) Ply
For hauling over rock, coal and log-strewn terrain. Tough tread offers resistance to cuts and snags. Less heat buildup enables smooth running over longer distances than the deep tread (E-4) types.
- Use: Dump trucks and Scrapers
Y67 Available Sizes
| TIRE SIZE | Ply Rating | |
|---|---|---|
| T/T | T/L | |
| 10.00-20 | 14, 24 | |
| 11.00-20 | 14 | |
| 12.00-20 | 18 , 24 , *28 | |
| 14.00-20 | 32 | |
| 12.00-24 | 16 , 20 | |
| 14.00-24 | 20 , 24 , 28 | |
| 16.00-24 | 24 | |
| 14.00-25 | 20 , 24 | |
| 16.00-25 | *24 , 28 | *24 , *28 , 32 |
| 18.00-25 | 32 | 32 , 40 |
| 18.00-33 | 28 , 32 | |
| 20.5-25 | 28 | |
| 23.5-25 | 32 | |
| 26.5-25 | 26 | |
| 29.5-25 | 28 , 34 | |
| 29.5-29 | 28 , *34 | |
| 33.25-29 | 26 , *32 | |
| 29.5-35 | 34 | |
| 33.25-35 | 32 , 38 | |
| 37.25-35 | 30 , *36 | |
| 37.5-39 | 44 , *52 | |
*Steel breaker construction available.

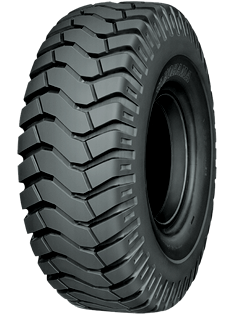

For hauling over rock, coal and log-strewn terrain. Tough tread offers resistance to cuts and snags. Less heat buildup enables smooth running over longer distances than the deep tread (E-4) types.
- Use: Dump trucks
Y565 Available Sizes
| TIRE SIZE | Ply Rating | |
|---|---|---|
| T/T | T/L | |
| 36.00-51 | 66 | |
Specially designed for use under highly abrasive conditions. Large ground contact area of wide, deep double chevron ‘flush’ pattern provides good cut resistance and long service life.
- Use: Dump trucks
Y523 Available Sizes
| TIRE SIZE | Ply Rating | |
|---|---|---|
| T/T | T/L | |
| 16.00-25 | 24 , 28 | |
| 18.00-25 | 32 | 32 , 40 |
| 18.00-33 | 32 , 36 , 40 | |
| 21.00-35 | *36 , 40 | |
| 24.00-35 | 36 , *42 , 48 | |
| 24.00-49 | 42 , 48 | |
| 27.00-49 | 42 , *48 | |
| 30.00-51 | 46 , 52 | |
| 33.00-51 | *50 , 58 | |
| 36.00-51 | 50 , 58 , 66 | |
| 40.00-57 | 68 , 76 | |
*Steel breaker construction available.

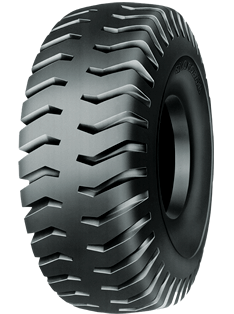

Specially designed for short haul operation.
- Use: Dump trucks
Y523U Available Sizes
| TIRE SIZE | Ply Rating | |
|---|---|---|
| T/T | T/L | |
| 18.00-33 | 32 | |

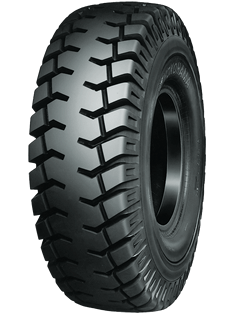

Specially designed for long haul operation. Less heat buildup enables smooth running over longer distances than the deep tread(Y523 E-4) type.
- Use: Dump trucks
Y567 Available Sizes
| TIRE SIZE | Ply Rating | |
|---|---|---|
| T/T | T/L | |
| 33.00-51 | |
*50 , 58 |
| 40.00-57 | 68 | |
*Steel breaker construction available.
