Truck & Bus Tires
Fleets today need more miles, greater retreadability, longer even-wear and less maintenance costs per kilometer from their tires. Given the extreme demands of today’s transport industry, continuous innovation in tire technology is essential. YOKOHAMA’s technology helps you get the most out of your tire investments.
On/Off Road Short Distance Transport (Asia / Oceania)
All-purpose, all- position tire for on & off construction-site operation. (Available only tubeless sizes)
Deeper & wider tread increases the mileage while the solid shoulder ribs resist against shoulder wear.
3 or 4 waved grooves produce traction and drainage.
Stone ejectors & V-shaped grooves decrease stone holding to enhance retreadability.
- Pattern when new
- Pattern when 70% worn
- Pattern after regrooved
* 4 waved grooves are applied only to
295/80R22.5 & 315/80R22.5
| TIRE SIZE | DIMENSION OF RECUT | |
|---|---|---|
| DEPTH(D) | WIDTH(W) | |
| 295/80R22.5 | 3.0 mm | 7.0 mm |
| 315/80R22.5 | 3.0 mm | 7.0 mm |
- Regrooved pattern is shown in black.
- Recut depth listed is maximum value.
- Recut width listed has +-1mm tolerance.
- Pattern when new
- Pattern when 70% worn
- Pattern after regrooved
- Deeper & wider tread
- 3 waved grooves
- Stone ejectors & V-shaped grooves
| TIRE SIZE | DIMENSION OF RECUT | |
|---|---|---|
| DEPTH(D) | WIDTH(W) | |
| 265/70R19.5 | 3.0 mm | 7.0 mm |
| 11R22.5 | 3.0 mm | 7.0 mm |
| 12R22.5 | 3.0 mm | 7.0 mm |
| 13R22.5 | 3.0 mm | 7.0 mm |
| 255/70R22.5 | 3.0 mm | 7.0 mm |
| 275/70R22.5 | 2.5 mm | 7.0 mm |
- Regrooved pattern is shown in black.
- Recut depth listed is maximum value.
- Recut width listed has +-1mm tolerance.
All-purpose, all-position tire foron & off construction-site operation. (Available only tube- type sizes)
Deeper tread produces longer mileage while the shoulder ribs resist against shoulder wear.
3 zigzag grooves with shoulder lugs produce traction and enhance smooth wear in local operation.
- Pattern when new
- Pattern when 70% worn
- Pattern after regrooved
- Deeper tread
- 3 zigzag grooves with shoulder lugs
| TIRE SIZE | DIMENSION OF RECUT | |
|---|---|---|
| DEPTH(D) | WIDTH(W) | |
| 10.00R20 | 3.0 mm | 7.0 mm |
| 11.00R20 | 3.0 mm | 7.0 mm |
| 12.00R20 | 3.0 mm | 7.0 mm |
| 12.00R24 | 3.0 mm | 7.0 mm |
- Regrooved pattern is shown in black.
- Recut depth listed is maximum value.
- Recut width listed has +-1mm tolerance.
All-purpose, all-position tire for on & off construction-site operation such as dump or logging.
Wide tread design with shoulder lugs delivers long mileage & traction.
The tread compound resists against cutting/chipping for extended mileage & retreadability.
- Pattern when new
- Pattern when 70% worn
- Pattern after regrooved
| TIRE SIZE | DIMENSION OF RECUT | |
|---|---|---|
| DEPTH(D) | WIDTH(W) | |
| 9.00R20 | 3.5 mm | 7.0 mm |
- Regrooved pattern is shown in black.
- Recut depth listed is maximum value.
- Recut width listed has +-1mm tolerance.
Drive axle tire for on & off construction-site operation.
Aggressive 4-block tread design with shoulder lugs produces dependable traction on rough surfaces.
Deeper & wider tread increase the mileage.
Tapered tread grooves reduce stone holding while newly-developed tread compound resists against cutting/chipping.
- Pattern when new
- Pattern when 70% worn
- Pattern after regrooved
- Deeper & wider tread
- Aggressive 4-block tread design
| TIRE SIZE | DIMENSION OF RECUT | |
|---|---|---|
| DEPTH(D) | WIDTH(W) | |
| 12.00R20 | 3.0 mm | 7.0 mm |
| 11R22.5 | 3.0 mm | 7.0 mm |
| 12R22.5 | 2.5 mm | 7.0 mm |
| 13R22.5 | 3.0 mm | 7.0 mm |
| 295/80R22.5 | 3.0 mm | 7.0 mm |
| 315/80R22.5 | 3.0 mm | 7.0 mm |
- Regrooved pattern is shown in black.
- Recut depth listed is maximum value.
- Recut width listed has +-1mm tolerance.
Drive axle tire for logging and quarrying operations with some short haul highway use possible.
Engineered to provide dependable traction and durability.
Specially deep tread depth and cut-resistant tread compound deliver good tyre mileage.
- Pattern when new
- Pattern when 70% worn
- Pattern after regrooved
| TIRE SIZE | DIMENSION OF RECUT | |
|---|---|---|
| DEPTH(D) | WIDTH(W) | |
| 11.00R20 | 3.0 mm | 7.0 mm |
| 11R22.5 | 3.0 mm | 7.0 mm |
| 12R22.5 | 2.5 mm | 7.0 mm |
- Regrooved pattern is shown in black.
- Recut depth listed is maximum value.
- Recut width listed has +-1mm tolerance.
Wide base ON & OFF trailer tire for on & off construction-site operation.
Wide & deep tread design produces long tread life.
Aggressive traction tread with transverse sub grooves enhances traction over rough surfaces.
Stone ejectors & funnel-shaped grooves decrease stone holding to enhance retreadability.
- Pattern when new
- Pattern when 70% worn
- Pattern after regrooved
| TIRE SIZE | DIMENSION OF RECUT | |
|---|---|---|
| DEPTH(D) | WIDTH(W) | |
| 385/65R22.5 | 3.0 mm | 7.0 mm |
| 425/65R22.5 | 3.0 mm | 7.0 mm |
| 445/65R22.5 | 3.0 mm | 7.0 mm |
- Regrooved pattern is shown in black.
- Recut depth listed is maximum value.
- Recut width listed has +-1mm tolerance.
On and Off Road Short Distance Transport
| PTN | SIZE | PLY | LI/SS | TUBE |
|---|---|---|---|---|
| Steer axle/ All positions |
||||
| MY507 | 265/70R19.5 | - | 143/141J | T/L |
| 11R22.5 | 16 | 148/145K | T/L | |
| 12R22.5 | 16 | 152/148K | T/L | |
| 13R22.5 | 18 | 154/150K | T/L | |
| 255/70R22.5 | 16 | 140/137K | T/L | |
| 275/70R22.5 | 16 | 148/145K | T/L | |
| 295/80R22.5 | 16 | 152/148K | T/L | |
| 315/80R22.5 | - | 156/150K | T/L | |

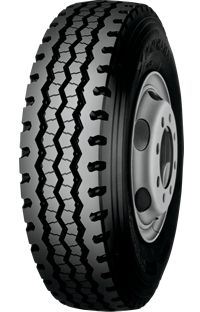

| MY547 | 10.00R20 | 16 | 148/145K | T/T |
| 11.00R20 | 16 | 150/146K | T/T | |
| 12.00R20 | 18 | 154/150K | T/T | |
| 12.00R24 | 18 | 156/153K | T/T | |
| Y773 | 9.00R20 | 14 | 141/138L | T/T |
| PTN | SIZE | PLY | LI/SS | TUBE |
|---|---|---|---|---|
| Drive axle | ||||
| LY717 | 12.00R20 | 18 | 154/150K | T/T |
| 11R22.5 | 16 | 148/145K | T/L | |
| 12R22.5 | 16 | 152/148K | T/L | |
| 13R22.5 | 18 | 154/150K(156/150G) | T/L | |
| 295/80R22.5 | - | 152/148K | T/L | |
| 315/80R22.5 | - | 156/150K(154/150M) | T/L | |
| LY053 | 11.00R20 | 16 | - | T/T |
| 11R22.5 | 16 | - | T/L | |
| 12R22.5 | 16 | - | T/L |
| PTN | SIZE | PLY | LI/SS | TUBE |
|---|---|---|---|---|
| Trailer axle | ||||

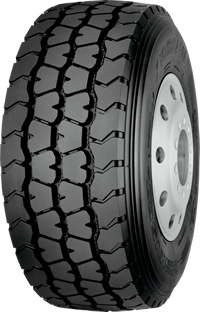

| MY507A | 385/65R22.5 | 18 | 158L(160J) | T/L |
| 425/65R22.5 | 20 | 165K | T/L | |
| 445/65R22.5 | 20 | 169K | T/L |
Availability of products shown in this document may vary from country to country. Please consult your YOKOHAMA distributor for local availability. Some tyres carry a second load/speed index marking which indicates supplementary operational possibilities.
