Truck & Bus Tires
Fleets today need more miles, greater retreadability, longer even-wear and less maintenance costs per kilometer from their tires. Given the extreme demands of today’s transport industry, continuous innovation in tire technology is essential. YOKOHAMA’s technology helps you get the most out of your tire investments.
Long Distance Transport (Asia / Oceania)
New highway steer tire engineered with innovative “Zenvironment” technologies for ordinal highway operations.
Newly-developed tread compound under “Zenvironment” technology provides longer mileage and better fuel economy.
New casing compound under “Zenvironment” technologies extend casing life for multi-retread.
The 6-rib tread design is the perfect steer position high performer. Now enhanced with over 6,000 sipes, this premium feature provides excellent water evacuation and uniform wear.
| 315/70R22.5 | 295/80R22.5 315/80R22.5 |
|
|---|---|---|
| Pattern when new |  |
 |
| Pattern when 70% worn |
 |
 |
| Pattern after regrooved |
 |
 |
315/70R22.5
- Pattern when new
- Pattern when 70% worn
- Pattern after regrooved
295/80R22.5
315/80R22.5
- Pattern when new
- Pattern when 70% worn
- Pattern after regrooved
- Tread design with special contoured design of the groove walls
- Newly-developed Tread Compound/ Deep Tread
- Wavy Grooves
- Stone EjectorsStone Ejectors
- SC-Sipe
- SC-Groove
| TIRE SIZE | DIMENSION OF RECUT | |
|---|---|---|
| DEPTH(D) | WIDTH(W) | |
| 315/70R22.5 | 2.5mm | 7.0mm |
| 295/80R22.5 | 2.5 mm | 7.0 mm |
| 315/80R22.5 | 2.5 mm | 7.0 mm |
- Regrooved pattern is shown in black.
- Recut depth listed is maximum value.
- Recut width listed has +-1mm tolerance.
Steer axle tire engineered with advanced YOKOHAMA’s technologies for long-haul operation.
The wide tread design with YOKOHAMA’s original SC Groove (Stress-wear Control Groove) is engineered to reduce irregular tread wear and increase mileage.
YOKOHAMA latest profile & construction improves retreadability and durability by extending casing life.
- Pattern when new
- Pattern when 70% worn
- Pattern after regrooved
| TIRE SIZE | DIMENSION OF RECUT | |
|---|---|---|
| DEPTH(D) | WIDTH(W) | |
| 11R22.5 | 2.5mm | 7.0mm |
| 12R22.5 | 2.0mm | 7.0 mm |
- Regrooved pattern is shown in black.
- Recut depth listed is maximum value.
- Recut width listed has +-1mm tolerance.
Drive axle tire designed with YOKOHAMA’s advanced technologies for long-haul operation.
Wide & deep tread design produces long tread life.
Alternated tread block design with 4-straight wide grooves increases even wear without sacrificing wet traction.
Shallow lug grooves at shoulder minimises shoulder heel & toe wear.
- Pattern when new
- Pattern when 70% worn
- Pattern after regrooved
- Wide & Deep tread
- Alternated tread block with 4-straight wide grooves
- Shallow lug grooves
| TIRE SIZE | DIMENSION OF RECUT | |
|---|---|---|
| DEPTH(D) | WIDTH(W) | |
| 11R22.5 | 3.0 mm | 7.0 mm |
| 315/70R22.5 | 3.0 mm | 7.0 mm |
| 295/80R22.5 | 3.0 mm | 7.0 mm |
| 315/80R22.5 | 3.0 mm | 7.0 mm |
- Regrooved pattern is shown in black.
- Recut depth listed is maximum value.
- Recut width listed has +-1mm tolerance.

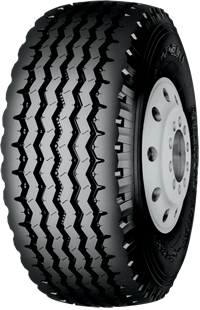

Wide base Long haul/Regional use tire engineered primarily for the trailer axles.
RY253 can be used on steer axle to deliver handling
performance & shoulder wear resistance.
6-rib tread design enhances even wear & wet traction.
Retreadability from a specially constructed casing.
- Pattern when new
- Pattern when 70% worn
- Pattern after regrooved
| TIRE SIZE | DIMENSION OF RECUT | |
|---|---|---|
| DEPTH(D) | WIDTH(W) | |
| 425/65R22.5 | 2.5 mm | 7.0 mm |
| 445/65R22.5 | 2.5 mm | 7.0 mm |
- Regrooved pattern is shown in black.
- Recut depth listed is maximum value.
- Recut width listed has +-1mm tolerance.

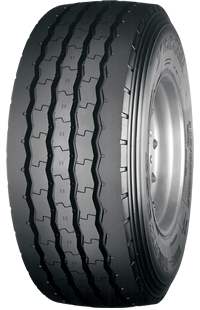

Wide base highway/regional use tire for the trailer axles.
The RY357 delivers long mileage & shoulder wear resistance on trailer axle use.
5-rib tread design enhances even wear and wet traction.
Specially constructed casing makes this tire well-suited for retreading.
- Pattern when new
- Pattern when 70% worn
- Pattern after regrooved
| TIRE SIZE | DIMENSION OF RECUT | |
|---|---|---|
| DEPTH(D) | WIDTH(W) | |
| 385/55R22.5 | 2.5 mm | 7.0 mm |
| 385/65R22.5 | 2.5 mm | 7.0 mm |
- Regrooved pattern is shown in black.
- Recut depth listed is maximum value.
- Recut width listed has +-1mm tolerance.
All-purpose trailer tire for long distance/regional operations. (available: 11R22.5 only)
5-rib tread design with straight grooves enhances even wear & wet traction.
Casing construction provides durability & retreadability for trailer service.
Long Distance Transport
| PTN | SIZE | PLY | LI/SS | TUBE |
|---|---|---|---|---|
| Steer axle | ||||
| 107ZL | 295/80R22.5 | 16 | 152/148M | T/L |
| 315/70R22.5 | 16 | 154/150L(152/148M) | T/L | |
| 315/80R22.5 | 20 | 156/150L(154/150M) | T/L | |
| RY237 | 10.00R20 | 16 | 148/145L | T/T |
| 11.00R20 | 16 | 150/146L | T/T | |
| 11R22.5 | 16 | 148/145M | T/L | |
| 12R22.5 | 16 | 152/148M | T/L |
| PTN | SIZE | PLY | LI/SS | TUBE |
|---|---|---|---|---|
| Drive axle | ||||
| TY517(E) | *11R22.5 | 16 | 148/145M | T/L |
| 295/80R22.5 | - | 152/148M | T/L | |
| 315/70R22.5 | - | 154/150L(152/148M) | T/L | |
| 315/80R22.5 | 18 | 154/150M(156/150L) | T/L |
| PTN | SIZE | PLY | LI/SS | TUBE |
|---|---|---|---|---|
| Trailer axle | ||||
| RY253 | 425/65R22.5 | 20 | 165K | T/L |
| 445/65R22.5 | 20 | 168K | T/L | |
| RY357 | 385/55R22.5 | 18 | 160J(158L) | T/L |
| 385/65R22.5 | 18 | 160J(158L) | T/L | |
| RY588 | 11R22.5 | 16 | 148/145M | T/L |
*=TY517 available size Availability of products shown in this document may vary from country to country. Please consult your YOKOHAMA distributor for local availability. Some tires carry a second load/speed index Marking which indicates supplementary operational possibilities.
