SAE 100R5 (WSR)

Feature

W series is high pressure hose which cleared SAE standard specification.
Fittings of W series was implemented field assembly.

  1. Easy for on site assembly. Hose can be cut suitable length for equipments.
  2. It enhance minimized down time to replace hose assembly built into equipments.
  3. No needs to purchase full assembly hose. It minimize excess inventory.

Construction

lnner Tube : Oil resistance synthetic rubber.
Reinforcement : Wire braid, Spiral Wire braid.
Outer Cover : Abrasion & weather-resistant synthetic rubber.

Application

Hydraulic oil

Operating Temperature Range

-40 ~ 93˚C -40 ~ 199˚F

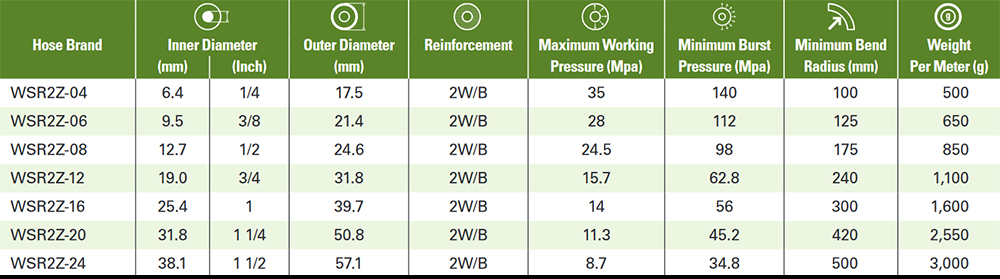

WSR2Z equivalent to SAE 100R2

WSR2Z

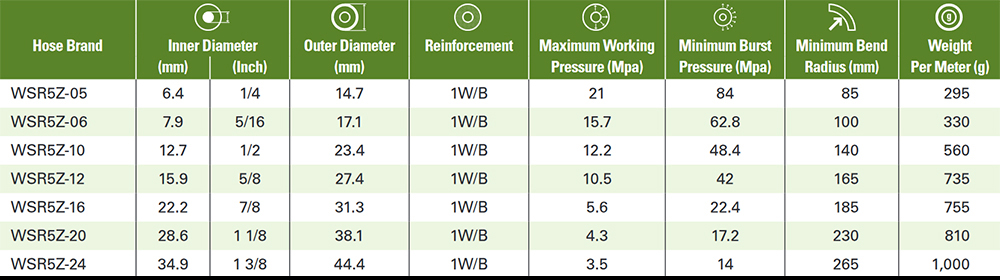

WSR5Z equivalent to SAE 100R5

WSR5Z

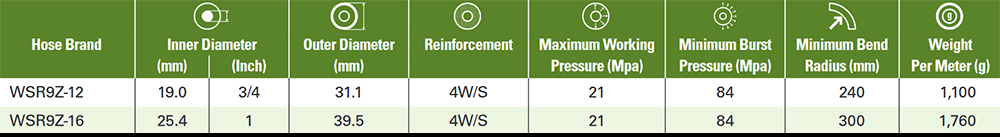

WSR9Z equivalent to SAE 100R9

WSR9Z
